Hangcha Electric 4 Wheel Forklift - 12—16 tonne Capacity

SKU
GBHC-CPD***-AXZ4

The A series 12-16 tonne (12,000kg—16,000kg) 4 wheel electric counterbalance forklift truck is a 4 wheel electric truck from Hangcha.

The electric forklift truck, with key parts of associated products from world-renowned manufacturers, features excellent performance, reliability and durability, high safety, as well as elegant, steady, simple but bright appearance. The product can be applied for a wide range of purposes, and is suitable for various working conditions including indoor and outdoor spaces.

Contact For Price

The A series 12-16 tonne (12,000kg—16,000kg) 4 wheel electric counterbalance forklift truck is a 4 wheel electric truck from Hangcha.

The electric forklift truck, with key parts of associated products from world-renowned manufacturers, features excellent performance, reliability and durability, high safety, as well as elegant, steady, simple but bright appearance. The product can be applied for a wide range of purposes, and is suitable for various working conditions including indoor and outdoor spaces.

   Depending on options chosen delivery can take up to 16 weeks.

Configurable Options

Specification Range
Lift Capacity 12,000kg, 14,000kg, 16,000kg
Max. Lift Height 3000mm, 3300mm, 3600mm, 4000mm, 4300mm, 4500mm, 4800mm, 5000mm, 6000mm, 6500mm
Mast Type Duplex

Please note that not all configurable options are available across all trucks.

Drive System

The AC travel motor of world-renowned brand features strong power, complete protection functions, and is maintenance-free, with substantially increased reliability and service life, and reduced maintenance and service costs; the heavy-duty drive axle of world-renowned brand features two-stage reduction, dual motor drive, multi-plate wet travel brake and motor auxiliary brake, safety and reliability, and the system is fully enclosed, maintenance-free, and suitable for heavy-duty working condition.

Hydraulic System

The system is equipped with electro-hydraulic proportional sectional valve of world-renowned brand, silent gear pump, pilot electric control handle, and AC oil pump motor. The load sensing hydraulic system reduces continuous load on oil pump motor; the remote electric control operating mode is simple, easy, and flexible. Several hydraulic pressure detection points are added to simplify maintenance and service work.

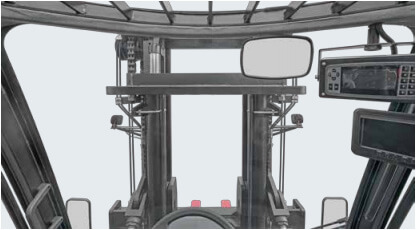

Mast System

The duplex mast has increased width, higher resistance to torsion, and broader view; oil circuit with dual governing valves features higher safety. Hydraulic fork width adjustment is a standard configuration.

Hangcha 12—16 tonne electric forklift

Braking System

The system is equipped with Poclain hydraulic brake valve, multi-plate wet travel brake and spring action, and hydraulic release caliper disc parking brake system

Steering System

Hangcha 12—16 tonne electric forklift

The system is equipped with horizontally placed oil cylinder steering axle of single dual-action oil cylinder, features fully hydraulic power steering, steering priority, with load sensing function, and can realize easy steering.

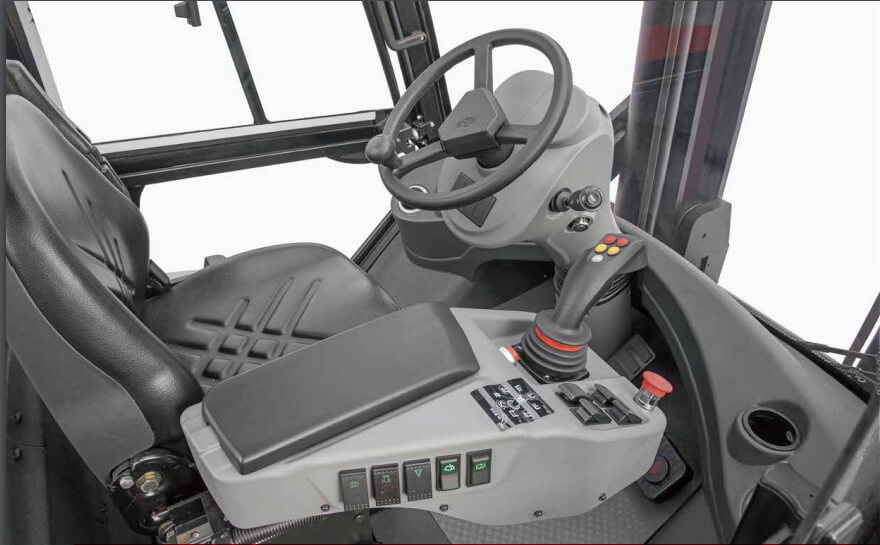

Cabin

The cabin is integrated and fully enclosed. Four-point rubber vibration-reducing connection of the cab can reduce vibration, and its tippable structure that is available for both electric and manual operations is convenient for daily maintenance; spacious cab floor, and ample overhead clearance and leg room allow easy access and exit of the driver at any time; the fully enclosed cab is thermally insulated, dust-proof, and waterproof; sliding curtain is provided inside the cab; filler is equipped at inlet of fresh air, and the internal recycling fan is adjustable. Comfortable temperature can be maintained in the cab with air conditioner and hot air device.

The seat is forward and backward adjustable, tilting angle of seat back is also adjustable, which can increase comfort level for the driver. All glass is of safety glass. Front, rear, and top windscreens are equipped with cleaner and wiper. Both front and rear windscreens are equipped with defroster.

12—16 tonne electric forklift cabin

Electric System

Hangcha 12—16 tonne electric forklift

The full AC controller of state of the art in the world is adopted, achieving electronic control for traveling, lifting, braking, and steering actions of the forklift. It features smooth and accurate control, superior speed regulation performance, with regenerative braking, reverse braking, and anti-slipping on slope and other functions, enabling more effective operation, higher safety and comfort.

The MMI instrument of world-leading brand is adopted, with large screen LCD battery indication, timing, failure self-diagnosis, and mode selection, and accurate display even in severe environment. The LED lighting system is adopted for energy saving.

Specification

  •    Handle
  •    Headlight guard
  •    Air conditioning
  •    Hydraulic fork width adjustment
  •    Cab
  •    Fully-hydraulic power steering
  •    Traction pin
  •    Front combined lamps
  •    Rear combined lamps
  •    Headlamp
  •    Electric horn
  •    Multi-functional colored display
  •    Neutral switch
  •    Patterned oil resistant tire
  •    Up & down tiltable steering column
  •    Rearview mirror
  •    On-truck tool kit
  •    Inclined oil circuit self-closing valve
  •    Four-section multi-way valve
  •    Lifting oil circuit speed limit valve
  •    Hydraulic oil tank level indicator
  •    Air filter
  •    Standard fork
  •    Standard seat
  •    Key switch
  •    Seat sensing system
  •    Alarm light
  •    Backup buzzer
  •    Wide-view mast
  •    Rubber pedal pad

Options

  •    Customized color
  •    Solid tire / environmentally friendly solid tire
  •    Work lamp
  •    Other sizes of fork
  •    Rearview system
  •    Battery charger
