Cantilever Racking

SKU
GBAS-CANTILEVER-RACKING

Our cantilever system is based on modular bays and fittings to provide cost effective storage of long and awkward items.

The frames are available in three heights and three depths in both single and double sided configurations. Each bay comes complete with three arms per frame and you can add or deduct the number of levels required.

The arms can be fitted with end stops (at an additional cost shown) to secure any loose products from falling off. The frames are spaced 1000mm or 1500mm apart with bolted on X brace, so you can easily work out your run using the starter and extension bay.

Contact For Price

Cantilever Racking

Details

Our cantilever system is based on modular bays and fittings to provide cost effective storage of long and awkward items.

The frames are available in three heights and three depths in both single and double sided configurations. Each bay comes complete with three arms per frame and you can add or deduct the number of levels required.

The arms can be fitted with end stops (at an additional cost shown) to secure any loose products from falling off. The frames are spaced 1000mm or 1500mm apart with bolted on X brace, so you can easily work out your run using the starter and extension bay.

  •   Incredible value for money
  •   Easy to build and reconfigure
  •   Up to 2200kgs per side
  •   Arms adjust every 75mm
  •   Tough epoxy finish




  •    5 Year Manufacturer Guarantee
  •    600kg arm load
  •    4,400kg load capacity

Product Specifics

Choose from the following :-

Specification Details
   Height 1976mm, 2432mm, 2964mm
   Width 1000mm, 1500mm
   Depth (single sided) 780mm, 980mm, 1180mm
   Depth (double sided) 1380mm, 1780mm, 2180mm
   Construction Frames: Galvanised Steel
Bracing: Steel (RAL 5015 Yellow)
Arms: Steel Blue RAL5015
Arm pins: Steel

Loading

Max Load per Side :-

Height(mm) Arm
600mm
Arm
800mm
Arm
1000mm
1976mm 2200kg 1900kg 1600kg
2432mm 2200kg 1900kg 1600kg
2964mm 2200kg 1900kg 1100kg

Dimensions

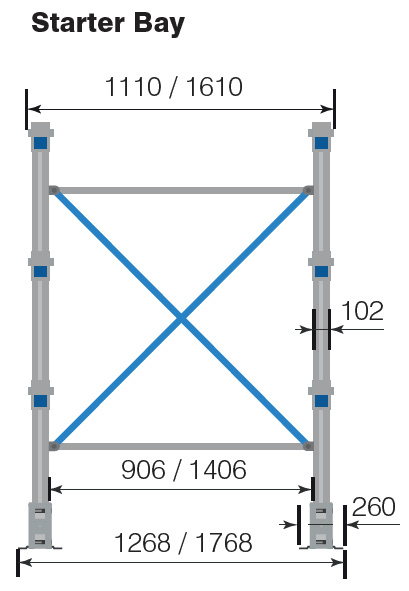

Dimensions of Cantilever Racking

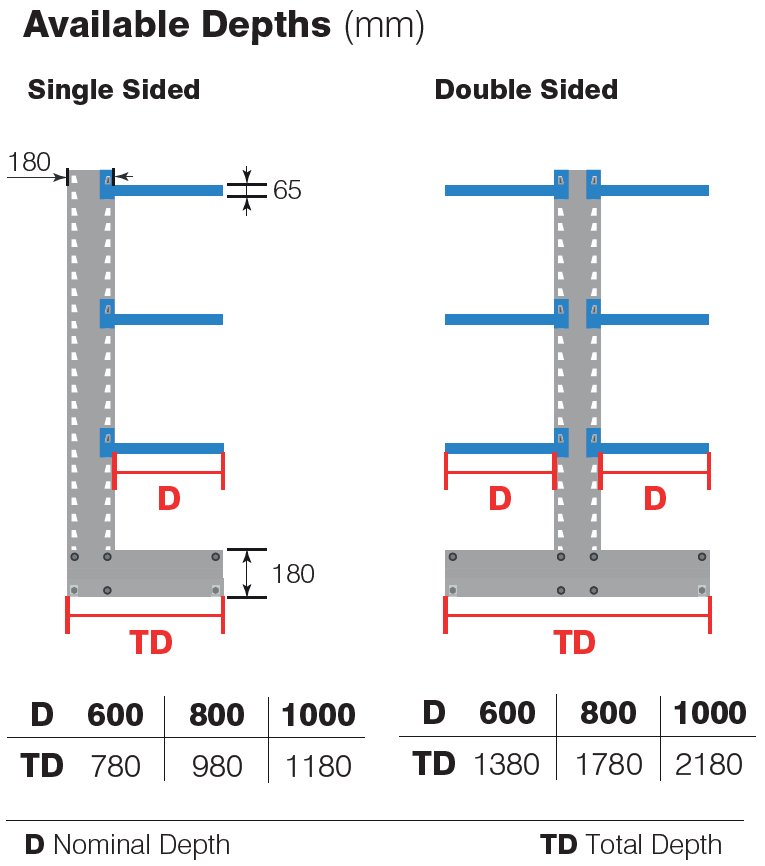

Dimensions of single and double cantilever racking
   Delivery Lead Time: 5—7 working days
